What is an Assembly (ASM)?
An assembly (ASM) is a functional unit created by joining two or more individual parts through processes like welding, bolting, or bonding. It is the backbone of complex machinery, from industrial robotics to aerospace frameworks. While the quality of each individual part is crucial, the ultimate precision and integrity of the ASM often depend on critical machining operations performed after the assembly has been constructed. This post-assembly machining ensures that all constituent parts function as a single, monolithic entity, with perfect alignment, critical feature accuracy, and structural soundness that cannot be achieved by simply bolting together pre-machined pieces.

The Unique Challenges of Advanced Assembly Machining

Machining a complete assembly is a far more complex undertaking than machining a single part. It presents a unique set of challenges that demand a specialized skill set, advanced technology, and a deep understanding of material behavior.

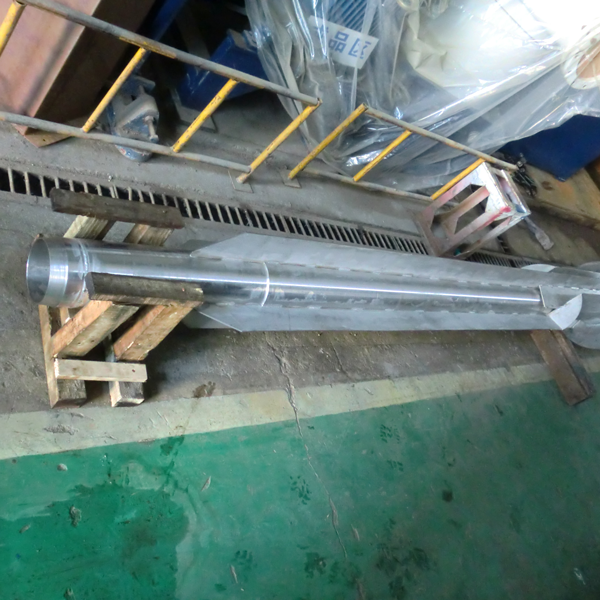

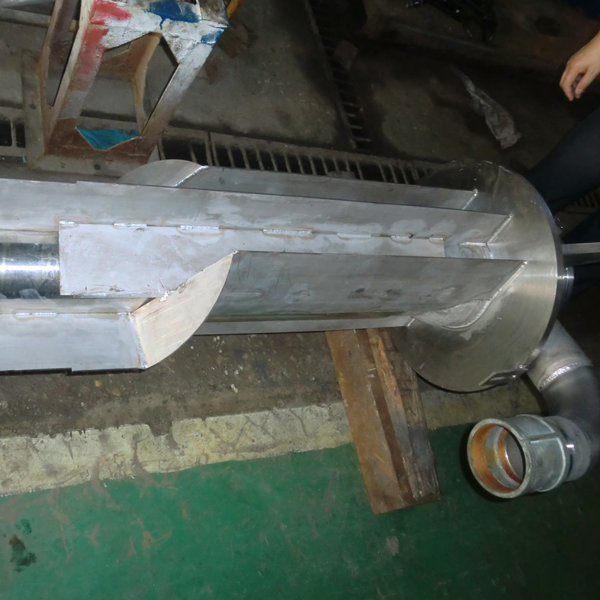

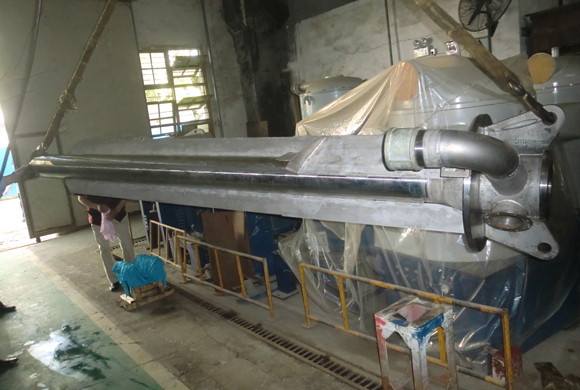

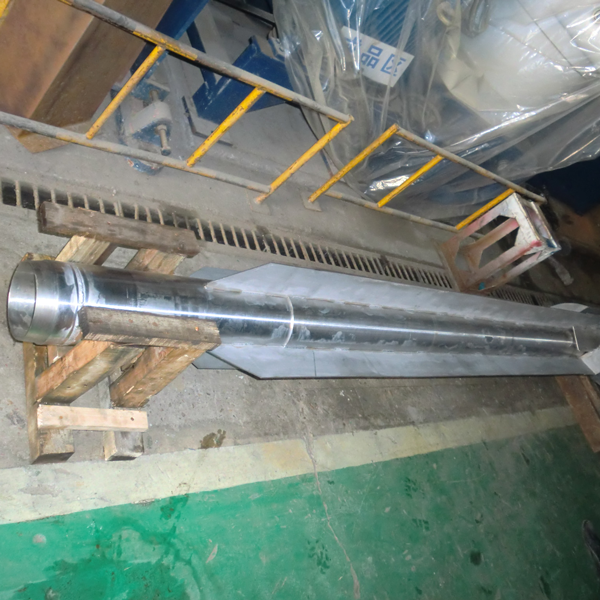

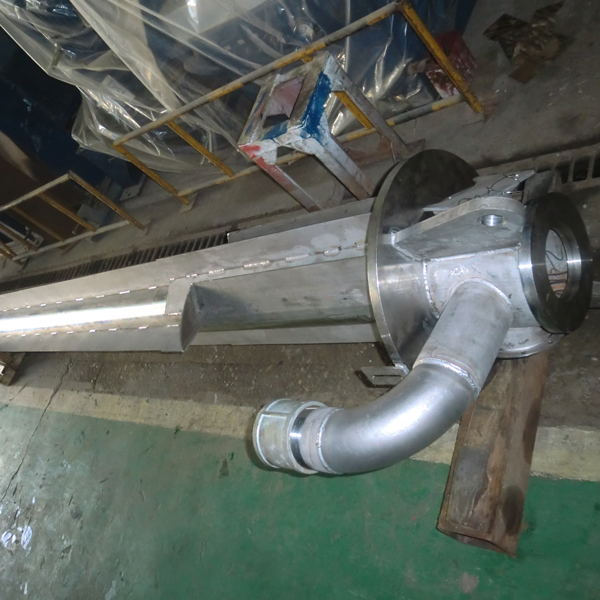

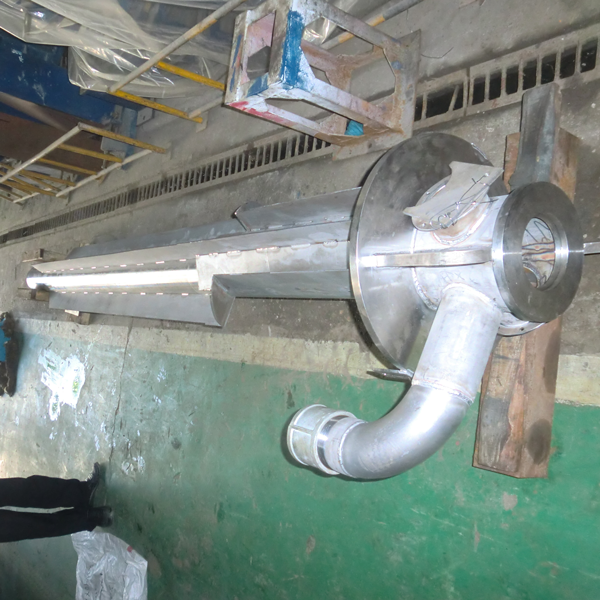

Welded ASMs:
Welding is a cornerstone of modern fabrication, but it introduces significant metallurgical challenges. The intense heat from welding creates residual stresses, potential distortion, and hard spots within the heat-affected zone. Machining a welded ASM is a delicate balancing act. It requires a carefully planned strategy to correct any geometric distortions caused by the welding process and to machine critical features to tight tolerances without compromising the strength of the weldments. Our expertise ensures that final datums and surfaces are perfectly true, regardless of the stresses introduced during fabrication.
Structural and Stress-Bearing ASMs:
For assemblies designed to be the primary load-bearing structures, precision machining is a matter of safety and reliability. These structural and stress-bearing ASMs must be machined to specifications that guarantee optimal stress distribution and fatigue resistance. The process involves not only achieving dimensional accuracy but also producing a specific surface finish that minimizes stress concentrators. Every feature, from mounting holes to critical mating surfaces, must be perfectly placed and finished to ensure the assembly can withstand its operational loads throughout its service life.
The Absolute Necessity of Custom Jigs and Fixtures:
Due to their often large, heavy, and irregular shapes, ASMs cannot be machined using standard workholding methods. Achieving the required level of precision is impossible without purpose-built tooling. Therefore, a non-negotiable part of our process is designing and fabricating corresponding jigs and fixtures for each unique ASM.
Absolute Stability:
Providing a rigid, secure base that holds the entire ASM without vibration or deflection during heavy machining cuts.
Precise Orientation:
Guaranteeing that the ASM is held in the exact correct orientation relative to the machine tool, ensuring all machined features are geometrically accurate in relation to each other.
Process Repeatability:
Ensuring every ASM in a production run is machined to the identical high standard, guaranteeing consistency and quality.

Our Meticulous Approach to Assembly Machining

We have engineered a robust, end-to-end process to deliver flawlessly machined assemblies.

Collaborative Engineering Review:
Our process begins with a deep dive into your ASM design. We collaborate with your team to review fabrication plans, material choices, and final requirements, identifying key challenges and optimizing the machining strategy before a single chip is cut.

Fabrication & Pre-Machining Preparation:
We can work with assemblies you provide or manage the full fabrication process. Post-fabrication, ASMs undergo necessary preparations, such as thermal stress relieving, to ensure material stability before machining.

Custom Jig and Fixture Engineering:
Our in-house tooling experts design and build a custom workholding solution tailored specifically to the geometry and machining requirements of your ASM, forming the foundation for ultimate precision.

State-of-the-Art Precision Machining:
Using our large-envelope, multi-axis CNC machining centers, our expert machinists execute the machining plan with meticulous care. We employ advanced probing and in-process verification to ensure features are machined to exacting tolerances across the entire assembly.

Comprehensive Quality Assurance:
Quality is our guiding principle. We utilize large-scale metrology equipment, such as laser trackers and coordinate measuring machines (CMMs), to perform rigorous, multi-point inspections and provide full documentation verifying that your ASM meets every specification.

Final Processing and Delivery:
Upon successful inspection, we provide any required final finishing, from coating to final cleaning. Your ASM is then carefully prepared for shipment and delivered ready for higher-level integration.

Why Partner with Us?

Your most critical projects demand a partner with uncompromising standards. Here is why industry leaders choose [Your Company Name] for their complex assembly machining:

Specialized Expertise:
We possess a rare and valuable expertise in the specific challenges of machining welded ASMs and large structural, stress-bearing ASMs.

Holistic In-House Capabilities:
Our ability to design and build custom jigs and fixtures provides a seamless, integrated solution that guarantees process control and unparalleled precision.

Unwavering Commitment to Quality:
Our quality systems are built for the most demanding industries. We provide the documentation, traceability, and assurance that your critical applications require.

A True Partnership Approach:
We operate as a strategic extension of your team, providing proactive communication and expert guidance to ensure your project's success.

Transform your complex fabrications into precision-engineered assemblies. Contact us today to discover the difference that true machining expertise can make.
